SR-320
Sakpattana SR-320
Designed for corn and rice harvesting, the nimble SR 320 is equipped familiar features of the KM AMT where mobility meets efficiency.

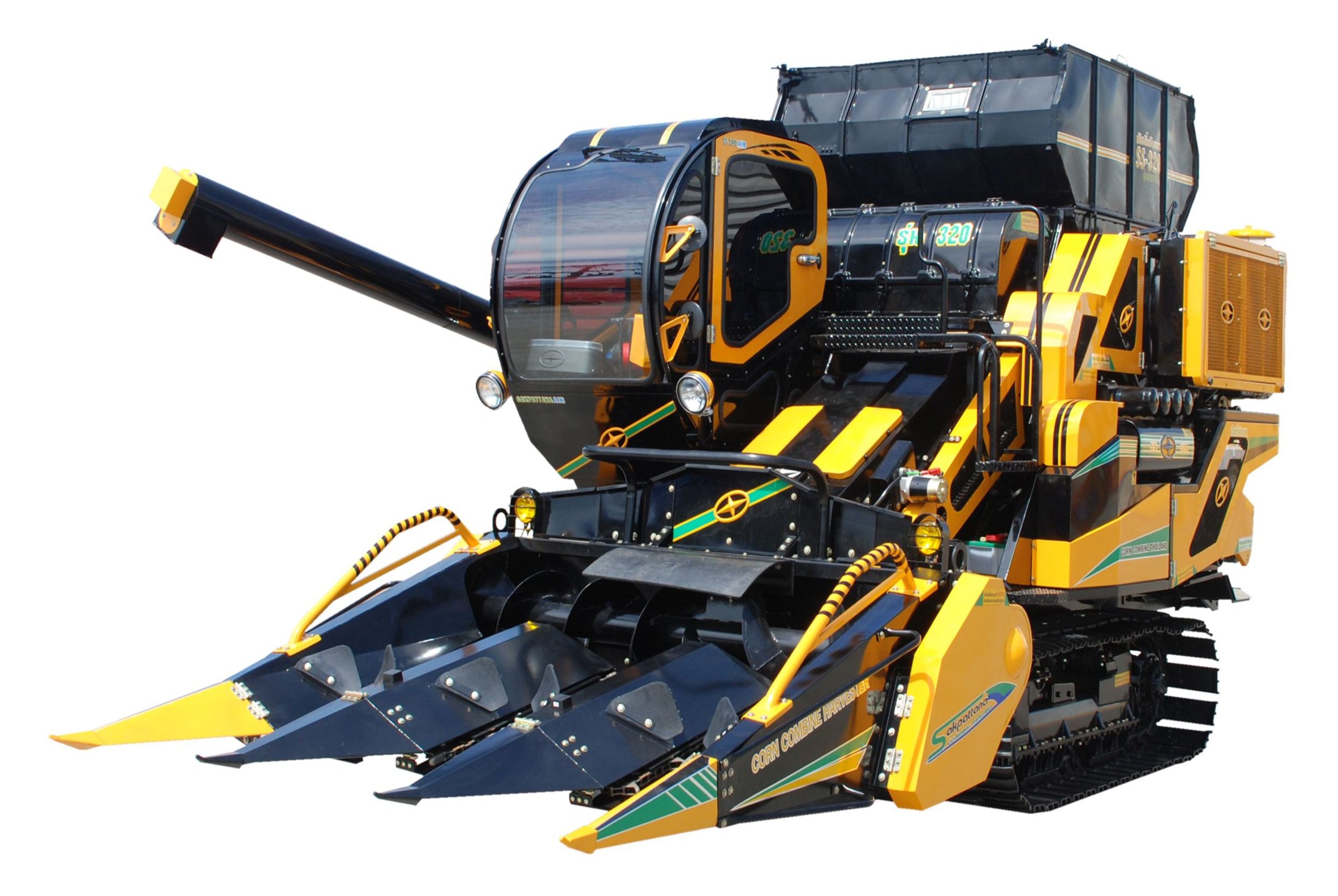

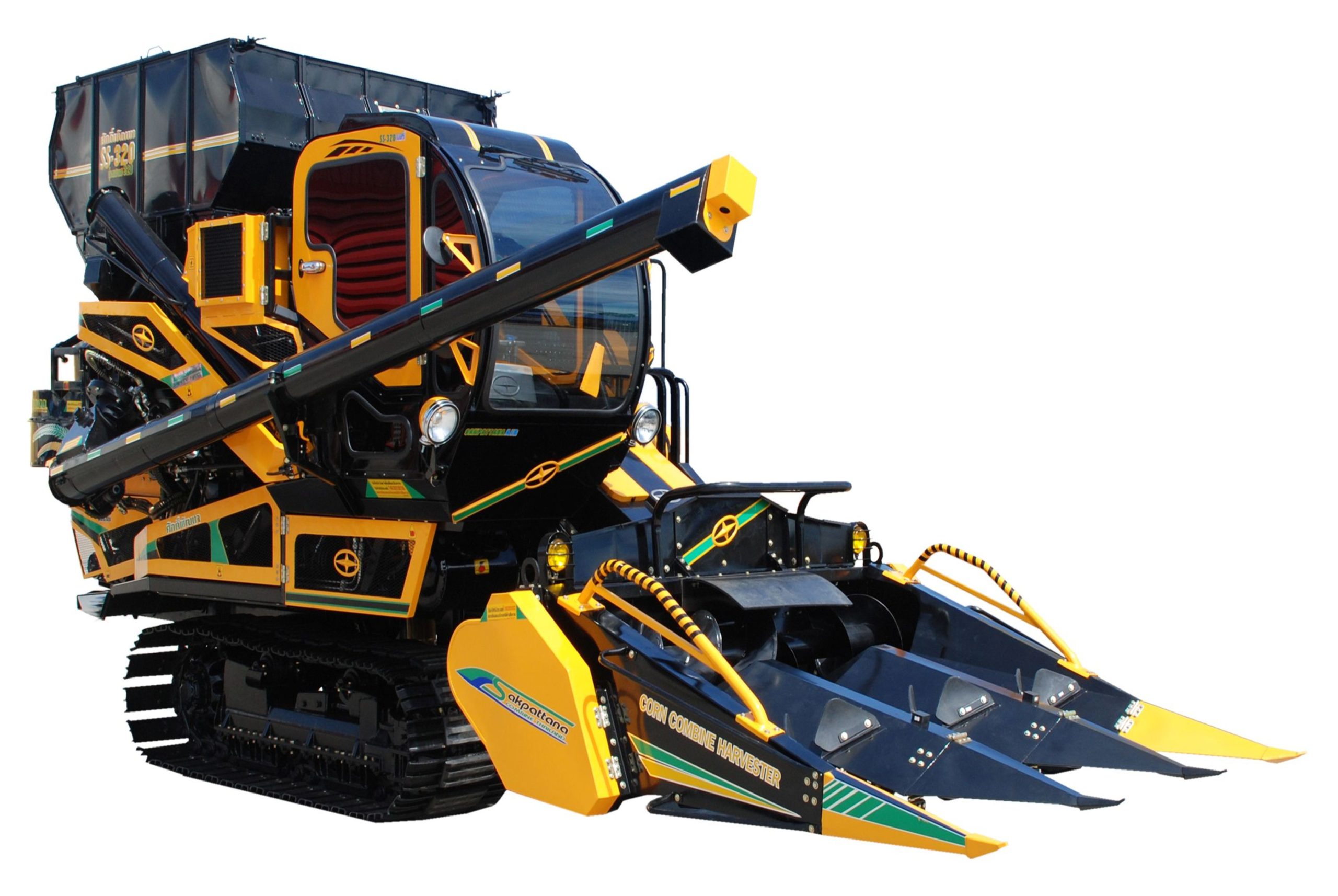

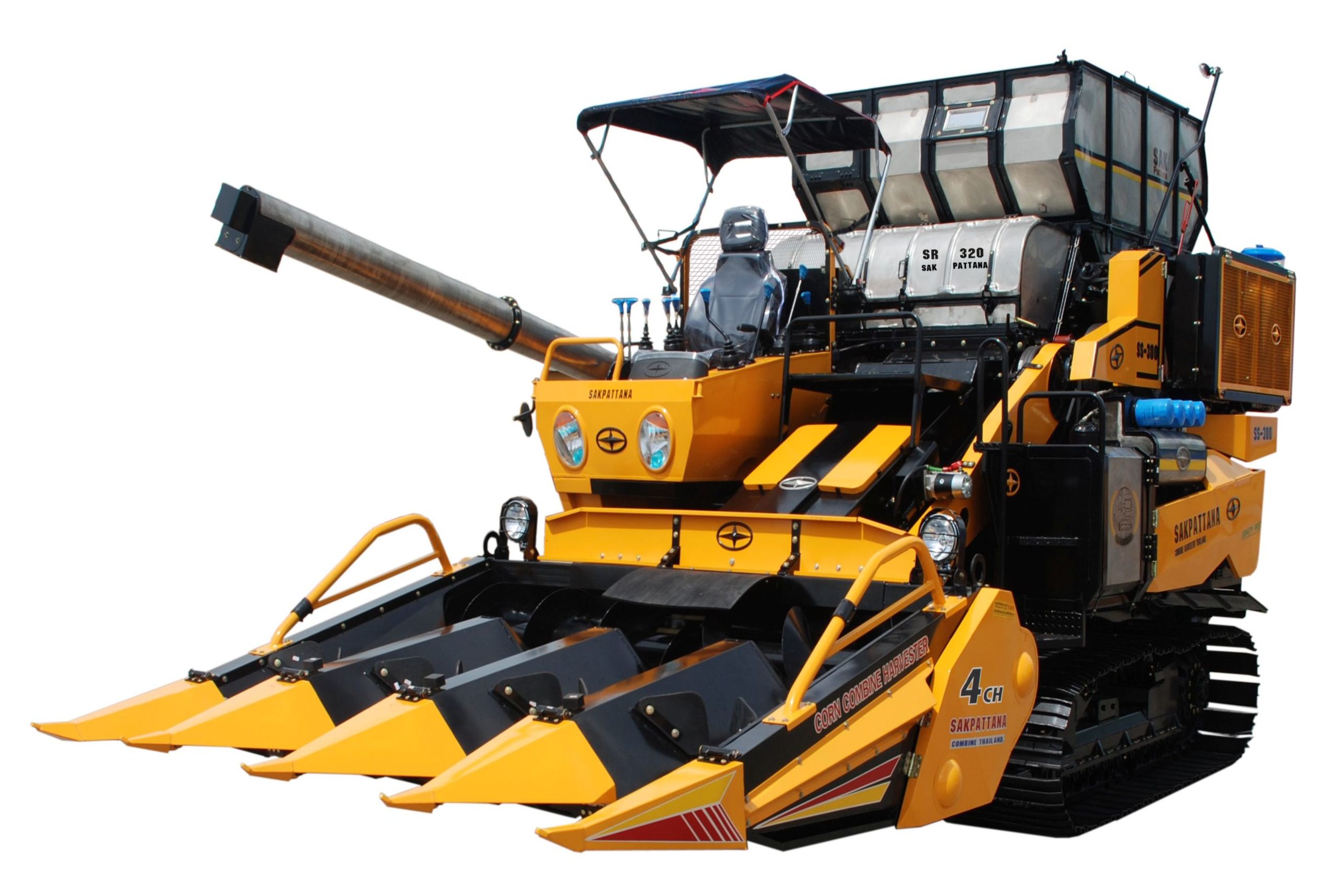

SR-320 With Corn Header

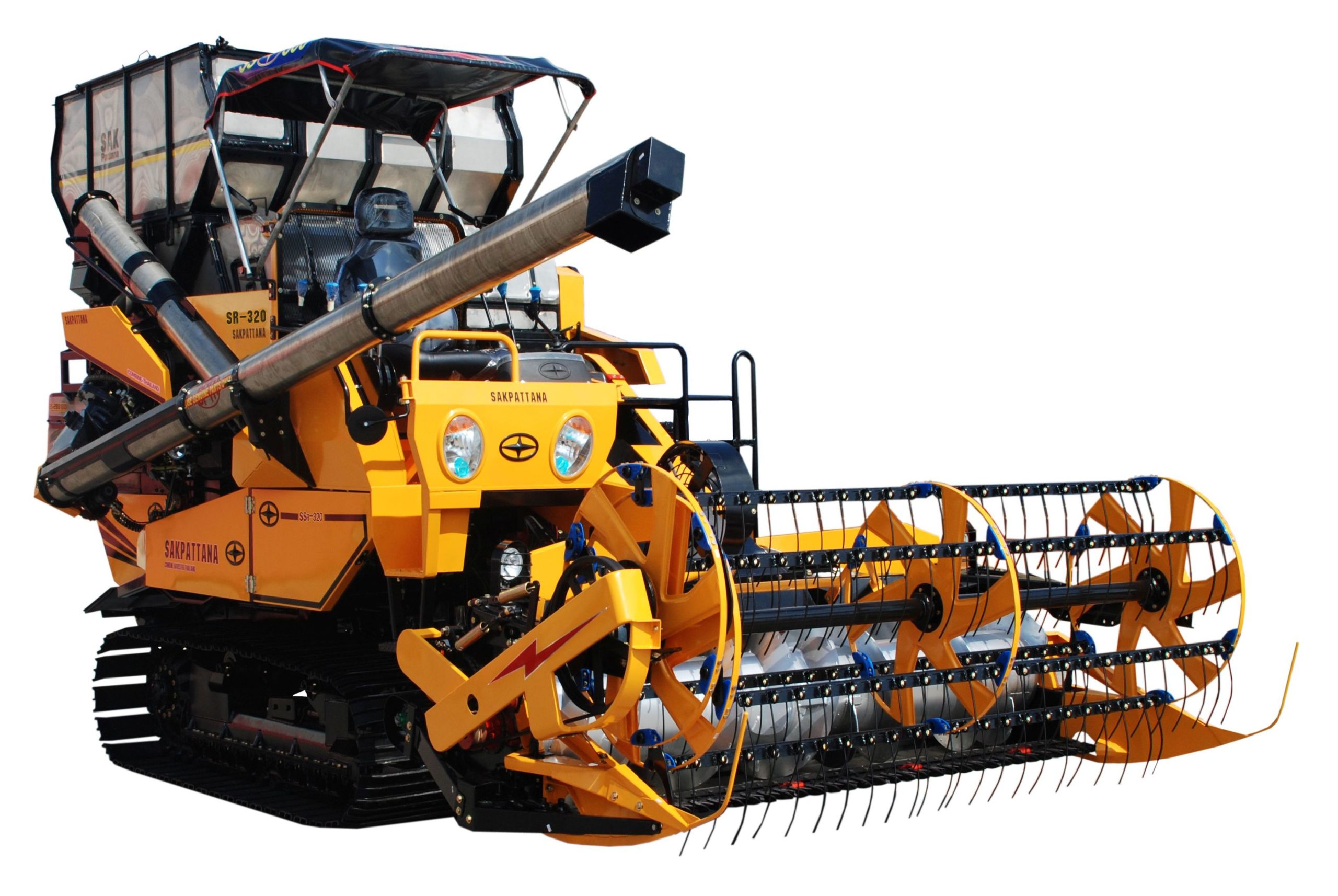

SR-320 With Paddy Header
Feature Highlight:
- Grain Tank
- 195 Horse Power
- Steel Track
- Changeable Header
- Close Cabin Operator *Additional
Specification Sakpattana SR-320
GRAIN TANK
| Model SR-320 | CORN | RICE |
| Dimensions | ||
| Width (mm) | 3,100 | |
| Length (mm) | 6,150 | |
| Hight (mm) | 3,150 | |
| Weight (kg) | 8,410 | 8,300 |
| Painting | Powder coated | |
| Engine | ||
| Type | 195HP 20-Valve 5-Cylinder Diesel Engine (G8 Turbocharged)*Remodelled* | |
| Gear Box | COMOSAK (Special planetary gear box; Model 12M) | |
| Output (RPM) | 1,100-1,200 | 1,200-1,300 |
| Pump system to drive the hydraulic motor | 89 cc. (double-hydrualic pump system) | |
| Motor system to drive the transmission | 89 cc. (hydraulic motor) | |
| Fuel Tank Capacity (Litre) | 120 | |
| Drive system | ||
| Controller | Free Drive’ – Left & Right Independent Turning System. | |
| Crawlers | ||
| Guide wheel – diameter (mm) | 406 | |
| Track Wheel – Width x Ground Contact Length (mm) | 2,125 x 2,830 | |
| Track shoes – Width x Length (mm) | 120 x 700 | |
| Number of COMOSAK Track Chain | 45 | |
| Size of COMOSAK Track Chain | B | |
| Number of COMOSAK Upper Track Rollers | 2 | |
| Size of COMOSAK Upper Track Rollers | D.2 | |
| Number of COMOSAK Lower Track Rollers | 9 | |
| Size of COMOSAK Lower Track Rollers | D.2 (Front & Back is D.2L) | |
| Number of Sprocket Teeth | 14/29 | |
| Transmission | ||
| Traveling Speed (km/hr) | 7-8 | |
| Harvesting Speed (km/hr) | 5-7 | |
| Cutting/Harvesting System | ||
| Snapping rolls and chains (Corn) / Reciprocating cutter bar and chains (Rice) | ||
| Cutter Bar Length (mm) | 2,150 (3 rows) or 2,900 (4 rows) | 2,550 |
| Gathering Length (mm) | 750 | 864 |
| Header Auger – diameter (mm) | 400 | 580 |
| Threshing system | ||
| Threshing cylinder – Diameter x Length (mm) | 420 x 1,217 | |
| Cleaning and screening system | Blower and single oscillating sieving screen | |
| Grain Tank | ||
| Removable Stainless Steel Grain tank | 1.0-1.2mm | |
| Capacity (kg) | 2,100 | 1,500 |
| Grain Discharge Performance (kg/min) | 350 | |
| Size of grain unloading conveyor (mm) | 178 x 4,500 | |
| Harvesting Capacity | ||
| Performance (indicative – h.a./day) | 3-5 | 4-6 |
| Volume (indicative – ton/hour) | 2-4 | 3-5 |
| Fuel consumption | ||
| Litre/hour | 15 – 19 | 14-17 |
