SS-200
Sakpattana SS-200
Small, nimble and practical harvester which can crosses terrain with ease and grace ensuring consistent harvest each time and every time. Steel tracks can easily maneuvers over normal, wet or dry terrain. This machine can harvest both rice and corn easily with just a change of header attachment.
The Sakpattana SS-200 is a high-capacity and efficient combine harvester that can help to improve productivity and crop yields. It’s cleaning system, ease of use, and versatility make it a popular choice for farmers and other users of agricultural machinery.

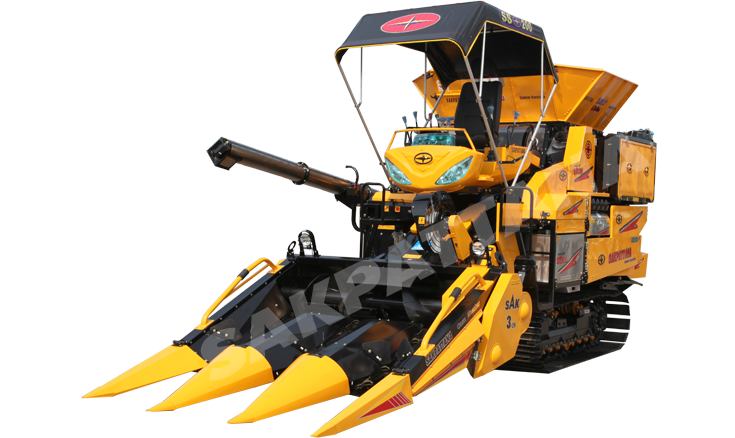

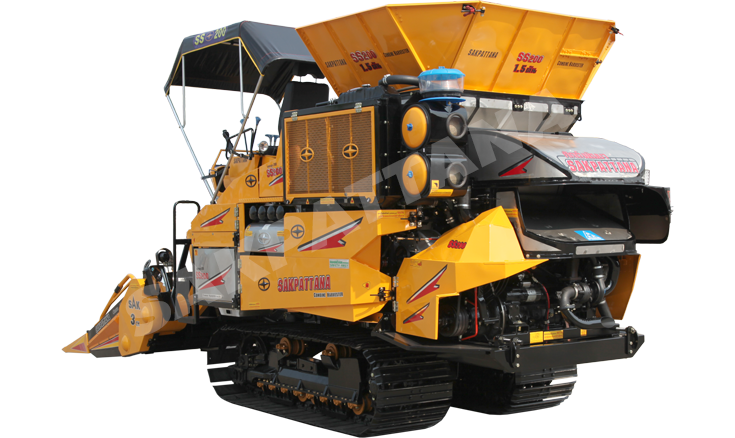

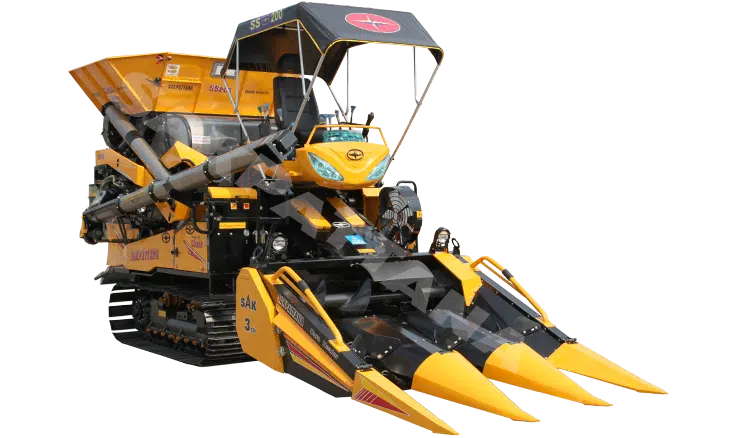

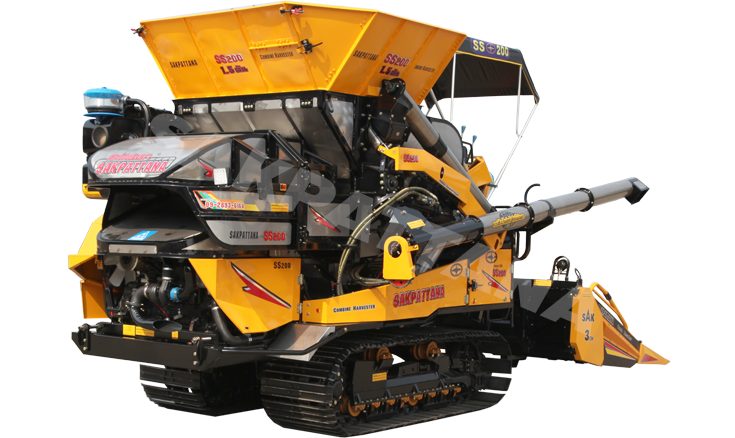

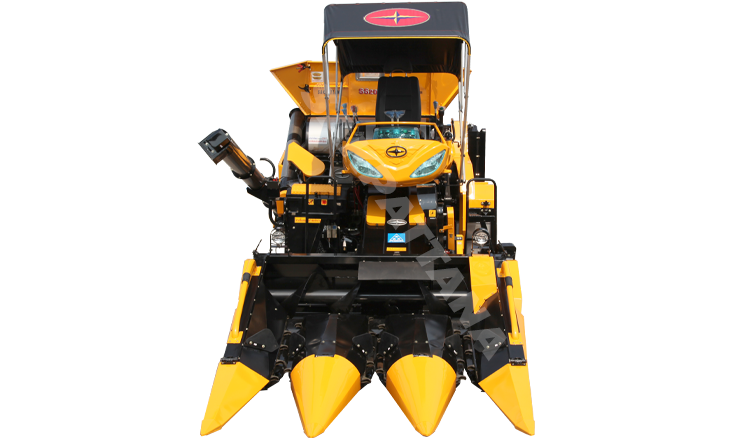

SS-200 With Corn Header

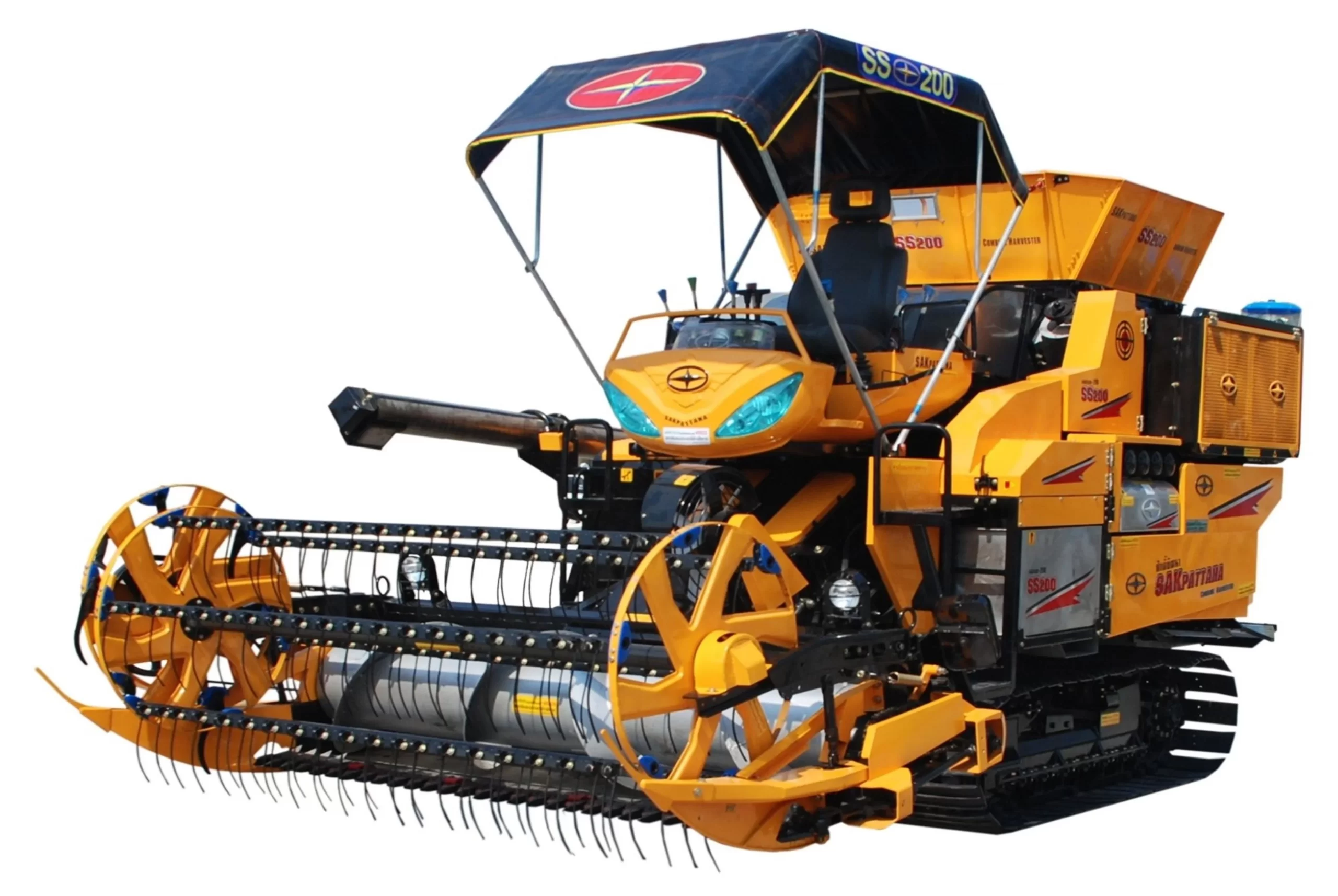

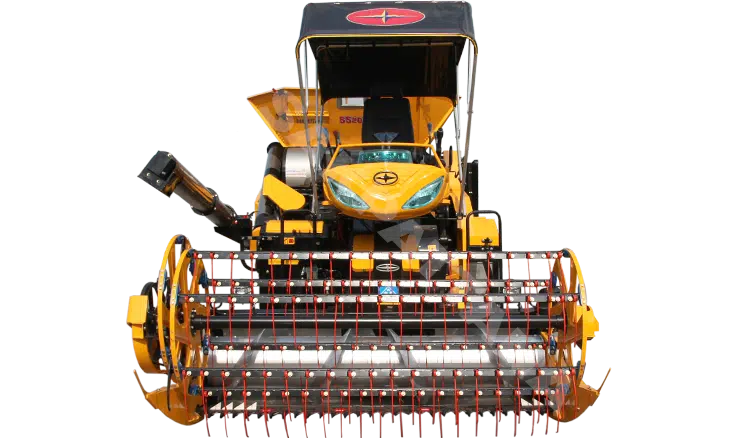

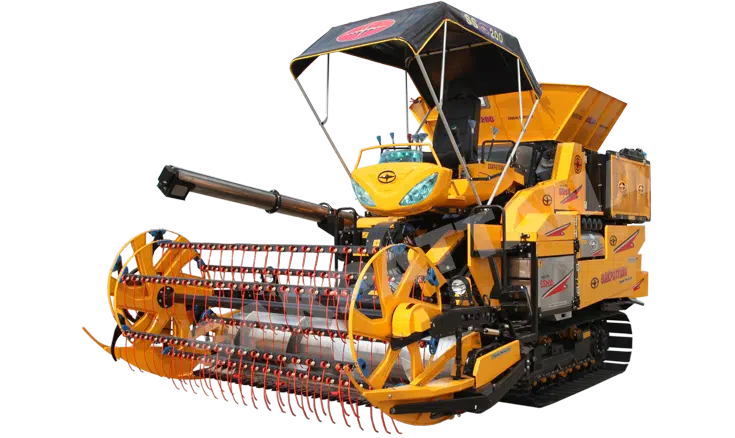

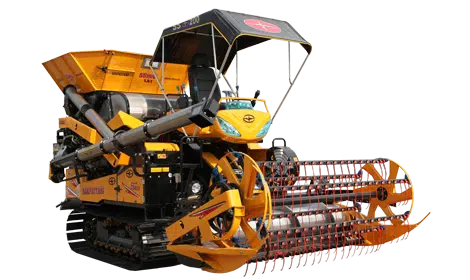

SS-200 With Paddy Header
Feature Highlight:
- Two types of Machine (Grain Tank & Bagging Hopper)
- 180 Horse Power
- Steel Track
- Changeable Header
Specification Sakpattana SS-200
GRAIN TANK
| Model SS-200C180 Combine Harvester with Grain Tank | CORN | RICE |
| Dimensions | ||
| Width (mm) /after disassemble (mm) | 2,700/ 2,210 | |
| Length (mm) / after disassemble (mm) | 5,920/ 4,400 | |
| Hight (mm) / after disassemble (mm) | 2,680/ 2,350 | |
| Weight (kg) | 6,600 | 6,400 |
| Painting | Powder coated | |
| Engine | ||
| Type | 180HP 12-Valve 6-Small Cylinder Diesel Engine (Cummins) |
|
| Gear Box | COMOSAK (Special planetary gear box; Model 10M) | |
| Output (RPM) | 2,200 | |
| Pump system to drive the hydraulic motor | 68 cc. (Single hydrualic pump system) | |
| Motor system to drive the transmission | 68 cc. (hydraulic motor) | |
| Fuel Tank Capacity (Litre) | 105 | |
| Drive system | ||
| Controller | Free Drive’ – Left & Right Independent Turning System. | |
| Crawlers | ||
| Guide wheel – diameter (mm) | 406 | |
| Track Wheel – Width x Ground Contact Length (mm) | 1,940 x 2,510 | |
| Track shoes – Width x Length (mm) | 120 x 650 | |
| Number of COMOSAK Track Chain | 40 | |
| Size of COMOSAK Track Chain | D.2(C) | |
| Number of COMOSAK Upper Track Rollers | 2 | |
| Size of COMOSAK Upper Track Rollers | D.2 | |
| Number of COMOSAK Lower Track Rollers | 8 | |
| Size of COMOSAK Lower Track Rollers | D.2 | |
| Number of Sprocket Teeth | 12-25 | |
| Transmission | ||
| Traveling Speed (km/hr) | 7-9 | |
| Harvesting Speed (km/hr) | 5-7 | |
| Cutting/Harvesting System | ||
| Snapping rolls and chains | ||
| Cutter Bar Length (mm) | 2,000 (3 rows) | 2,320 |
| Gathering Length (mm) | 700 | 850 |
| Header Auger – diameter (mm) | 370 | 580 |
| Threshing system | ||
| Threshing cylinder – Diameter x Length (mm) | 420 x 1,000 | |
| Cleaning and screening system | Blower and single oscillating sieving screen | |
| Grain Tank | ||
| Removable Stainless Steel Grain tank | 1.0-1.2mm | |
| Capacity (kg) | 1,500 | |
| Grain Discharge Performance (kg/min) | 333.33 | |
| Size of grain unloading conveyor (mm) | 165 x 3,600 | |
| Harvesting Capacity | ||
| Performance (indicative – h.a./day) | 2.5-4.5 | 3.5 – 4.8 |
| Volumn (indicative – ton/hour) | 2.0-3.5 | 3 – 4.5 |
| Fuel consumption | ||
| Litre/hour | 16 – 19 | |
BAGGING HOPPER
| Model SS-200C180 Combine Harvester with Bagging Hopper | CORN | RICE |
| Dimensions | ||
| Width (mm) / after disassemble (mm) | 2,320/ 2,090 | 2,750 / 2,090 |
| Length (mm) / after disassemble (mm) | 6,050/ 4,410 | 5,920 / 4,500 |
| Hight (mm) / after disassemble (mm) | 2,680/ 2,330 | |
| Weight (kg) | 6,300 | 5,850 |
| Painting | Powder coated | |
| Engine | ||
| Type | 180HP 12-Valve 6-Small Cylinder Diesel Engine (Cummins) |
|
| Gear Box | COMOSAK (Special planetary gear box; Model 10M) | |
| Output (RPM) | 2,200 | |
| Pump system to drive the hydraulic motor | 68 cc. (Single hydrualic pump system) | |
| Motor system to drive the transmission | 68 cc. (hydraulic motor) | |
| Fuel Tank Capacity (Litre) | 105 | |
| Drive system | ||
| Controller | Free Drive’ – Left & Right Independent Turning System. | |
| Crawlers | ||
| Guide wheel – diameter (mm) | 406 | |
| Track Wheel – Width x Ground Contact Length (mm) | 1,940 x 2,510 | |
| Track shoes – Width x Length (mm) | 120 x 680 | |
| Number of COMOSAK Track Chain | 40 | |
| Size of COMOSAK Track Chain | D.2(C) | |
| Number of COMOSAK Upper Track Rollers | 2 | |
| Size of COMOSAK Upper Track Rollers | D.2 | |
| Number of COMOSAK Lower Track Rollers | 8 | |
| Size of COMOSAK Lower Track Rollers | D.2 | |
| Number of Sprocket Teeth | 12-25 | |
| Transmission | ||
| Traveling Speed (km/hr) | 7-9 | |
| Harvesting Speed (km/hr) | 5-7 | |
| Cutting/Harvesting System | ||
| Snapping rolls and chains (Corn) / Reciprocating cutter bar and chains (Rice) | ||
| Cutter Bar Length (mm) | 2,000 (3 rows) | 2,320 |
| Gathering Length (mm) | 700 | 850 |
| Header Auger – diameter (mm) | 370 | 580 |
| Threshing system | ||
| Threshing cylinder – Diameter x Length (mm) | 420 x 1,000 | |
| Cleaning and screening system | Blower and single oscillating sieving screen | |
| Grain Storage | ||
| Removable Stainless Steel Grain tank | 1.0-2.0mm | |
| Sack capacity – Width x Length (mm) | 570 x 920 | |
| Number of Sack Storage | 2 | |
| Harvesting Capacity | ||
| Performance (indicative – h.a./day) | 2.5-4.5 | 3.5 – 4.8 |
| Volumn (indicative – ton/hour) | 2.0-3.5 | 3.0-4.5 |
| Fuel consumption | ||
| Litre/hour | 16 – 19 | |
